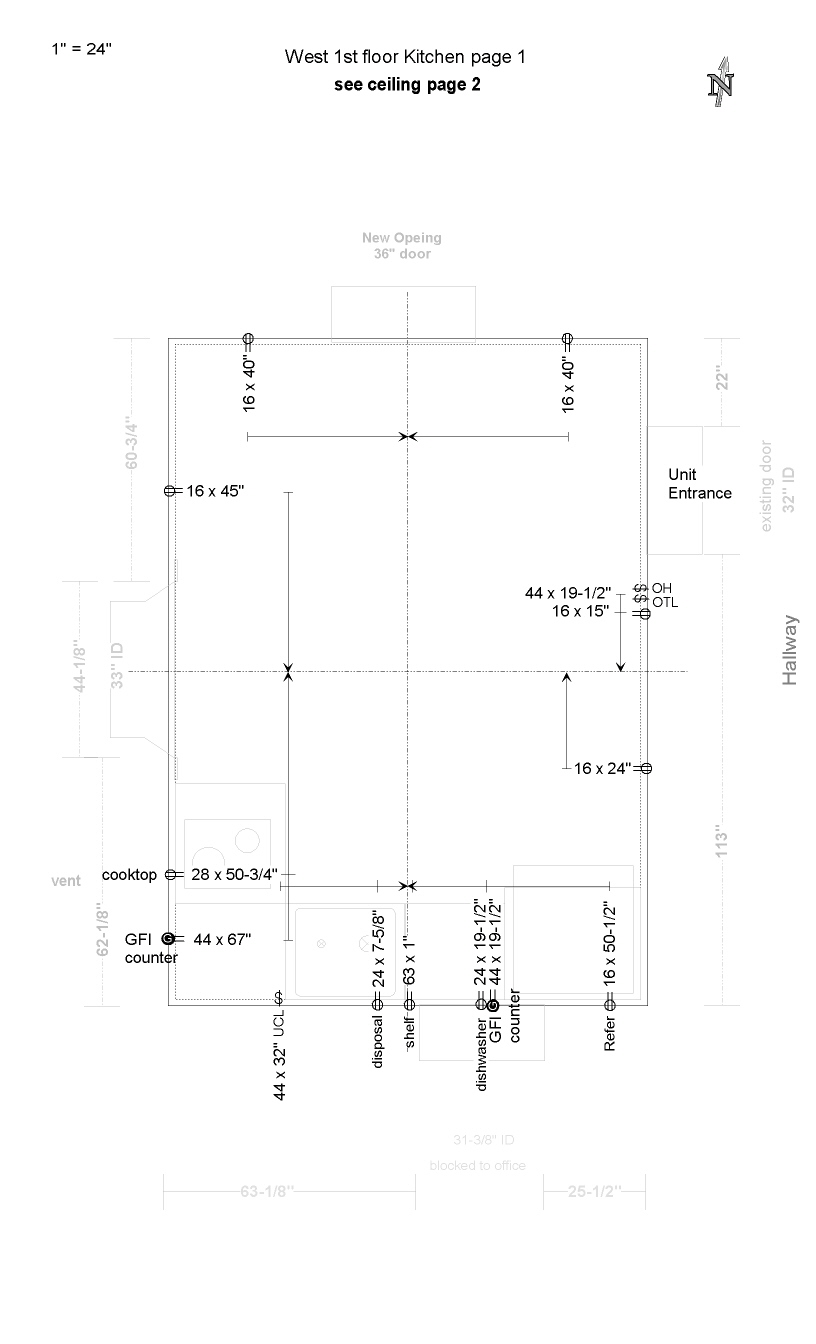

W1 South wall from center to West disposal outlet 24 x 7-5/8 from center to East shelf outlet = 63 x 1" dishwasher outlet = 16 x 19-1/2" GFI Counter outlet = 44 x 19-1/2" Refer outlet = 16 x 50-1/2" W1 East wall from center to North wall outlet = 16 x 34" from center to South wall outlet = 16 x 24" W1 North wall from center to West wall outlet = 16 x 40" from center to East wall outlet = 16 x 40" W1 West wall from center to North wall outlet = 16 x 45" from center to South cooktop outlet = 28 x 50-3/4" GFI countertop outlet = 44 x 67"
